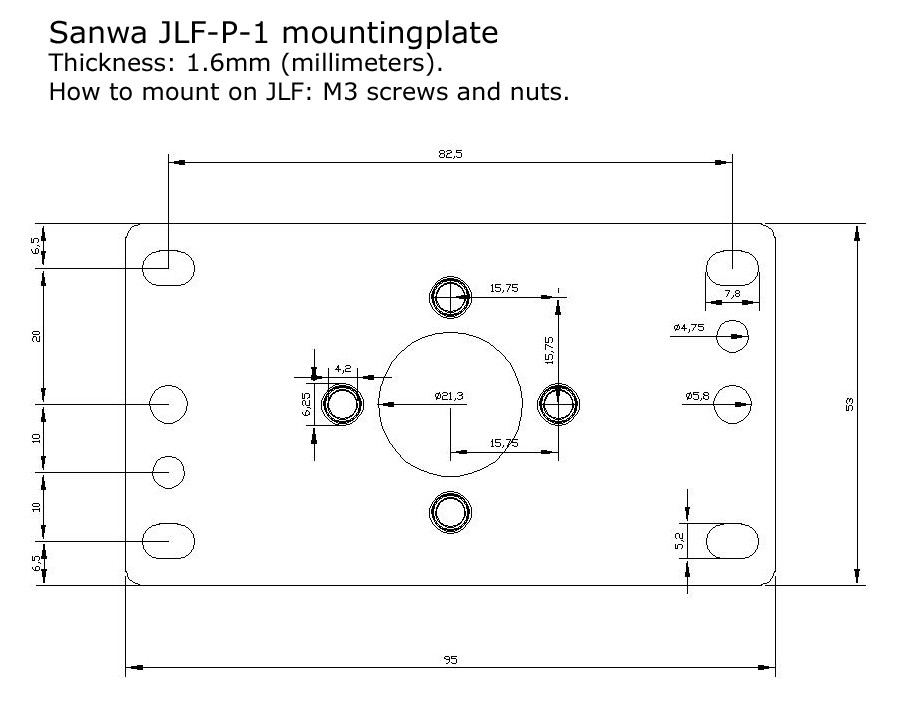

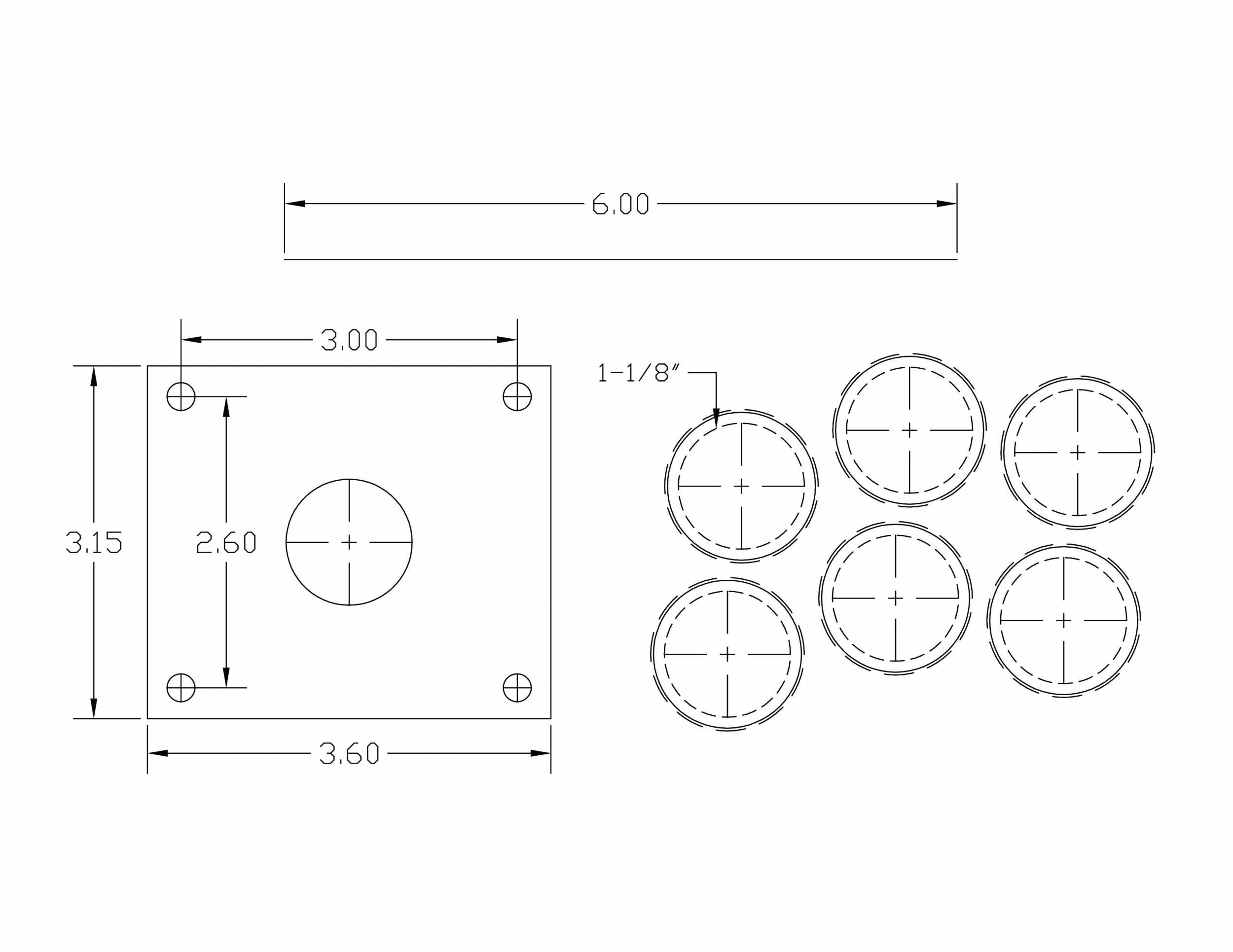

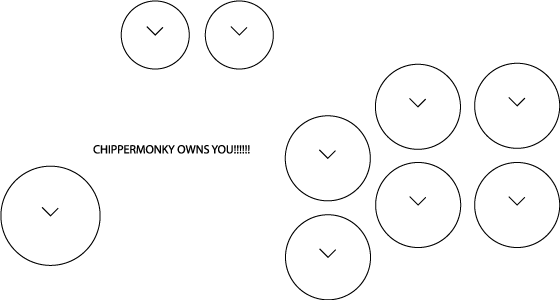

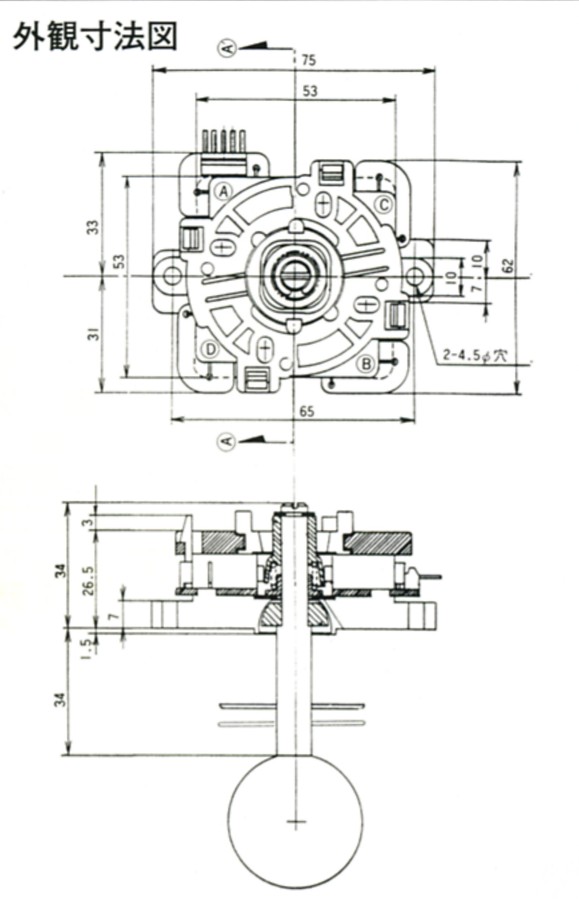

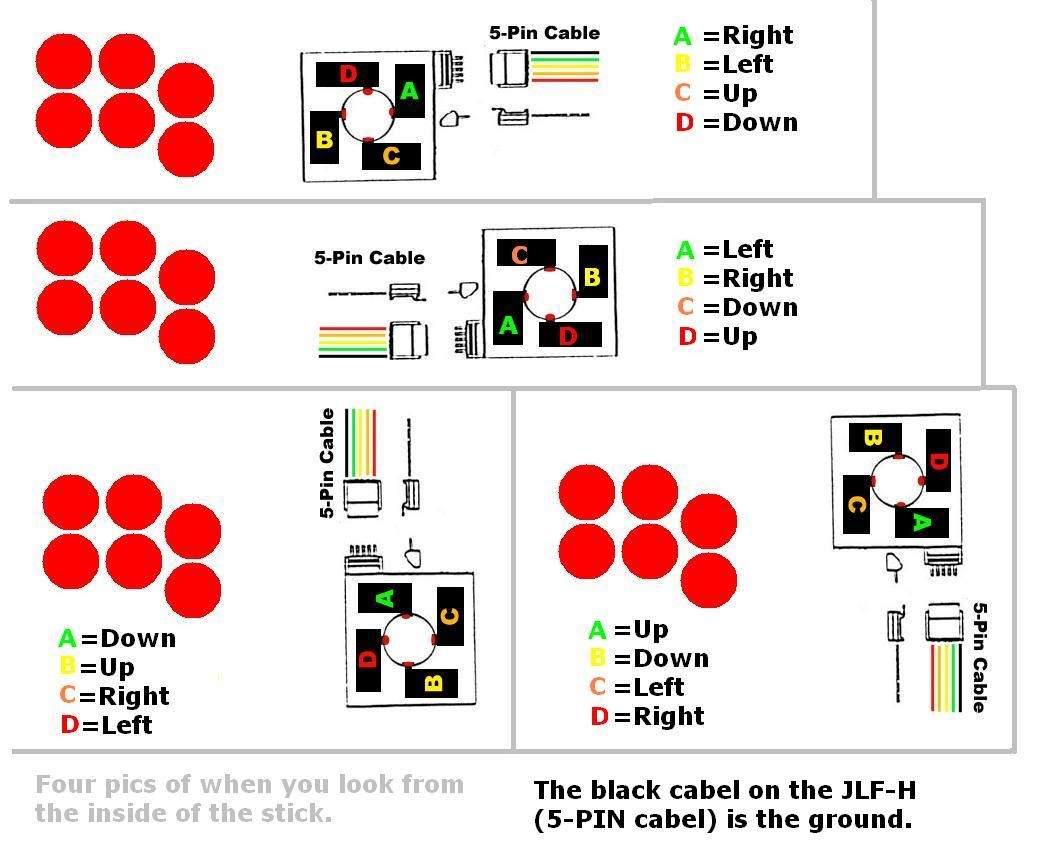

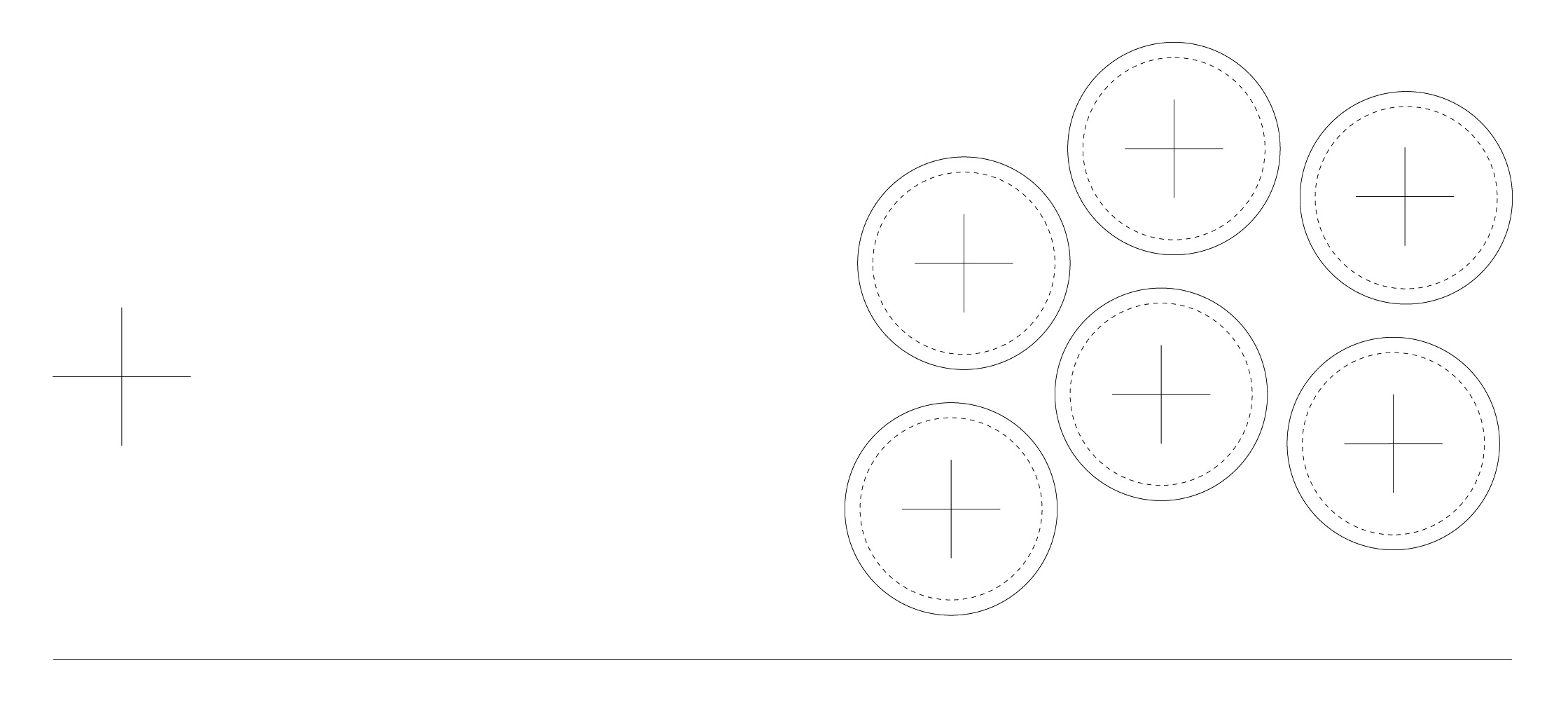

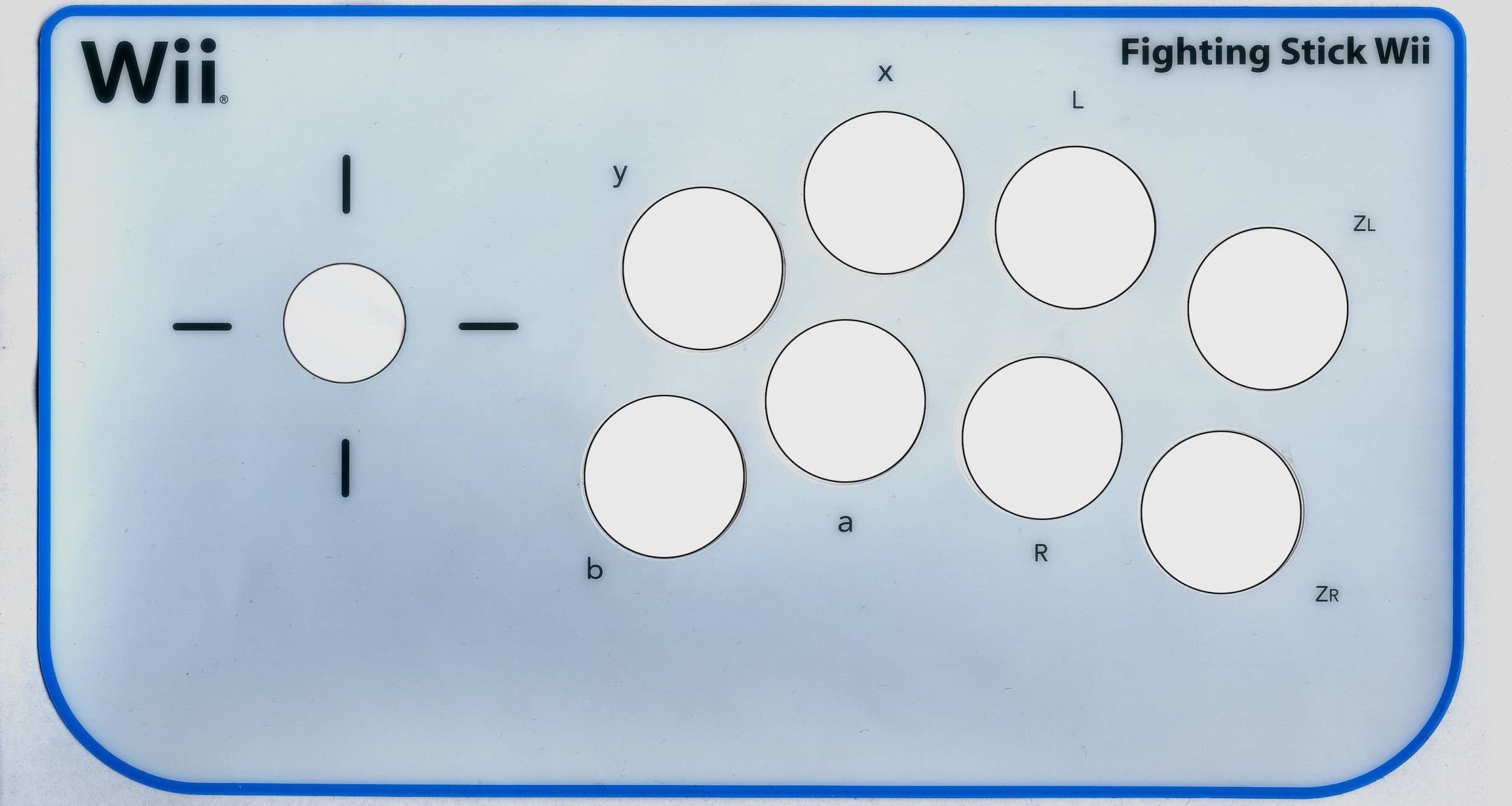

Button Layouts and Templates

Tips, part lists, and feedback on Button Layouts and Templates.

• bigsexyc4204/15/2009

  Left a vote on this build

• tekkenboy4/3/2009

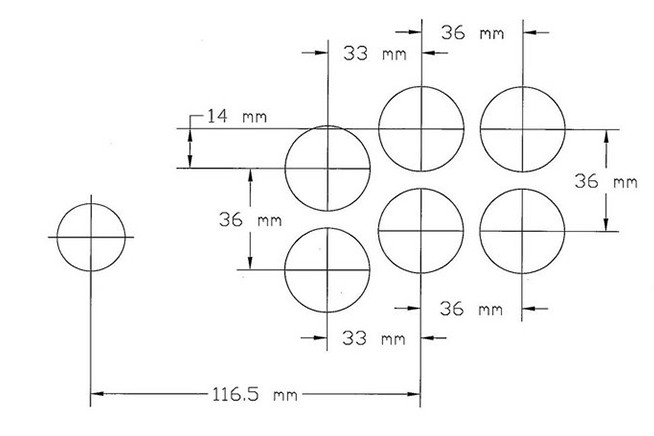

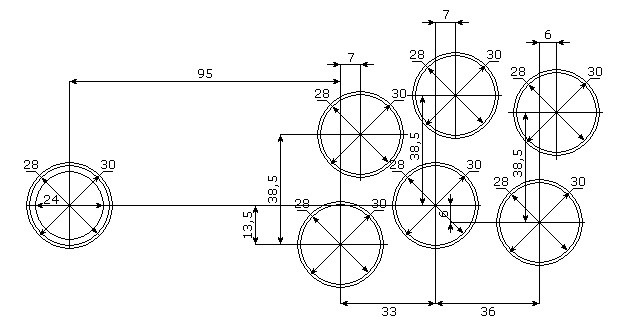

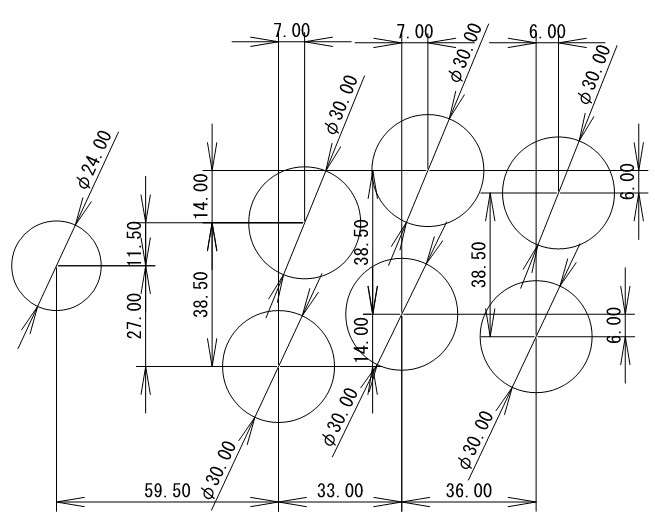

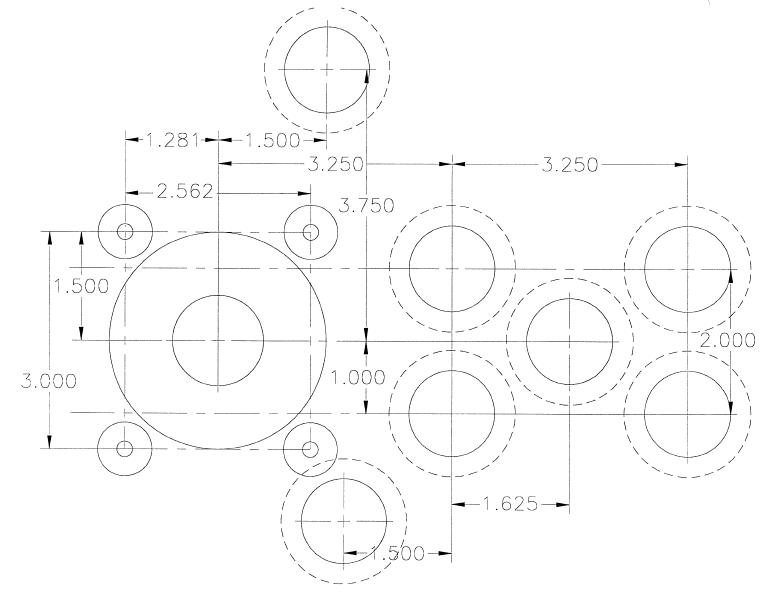

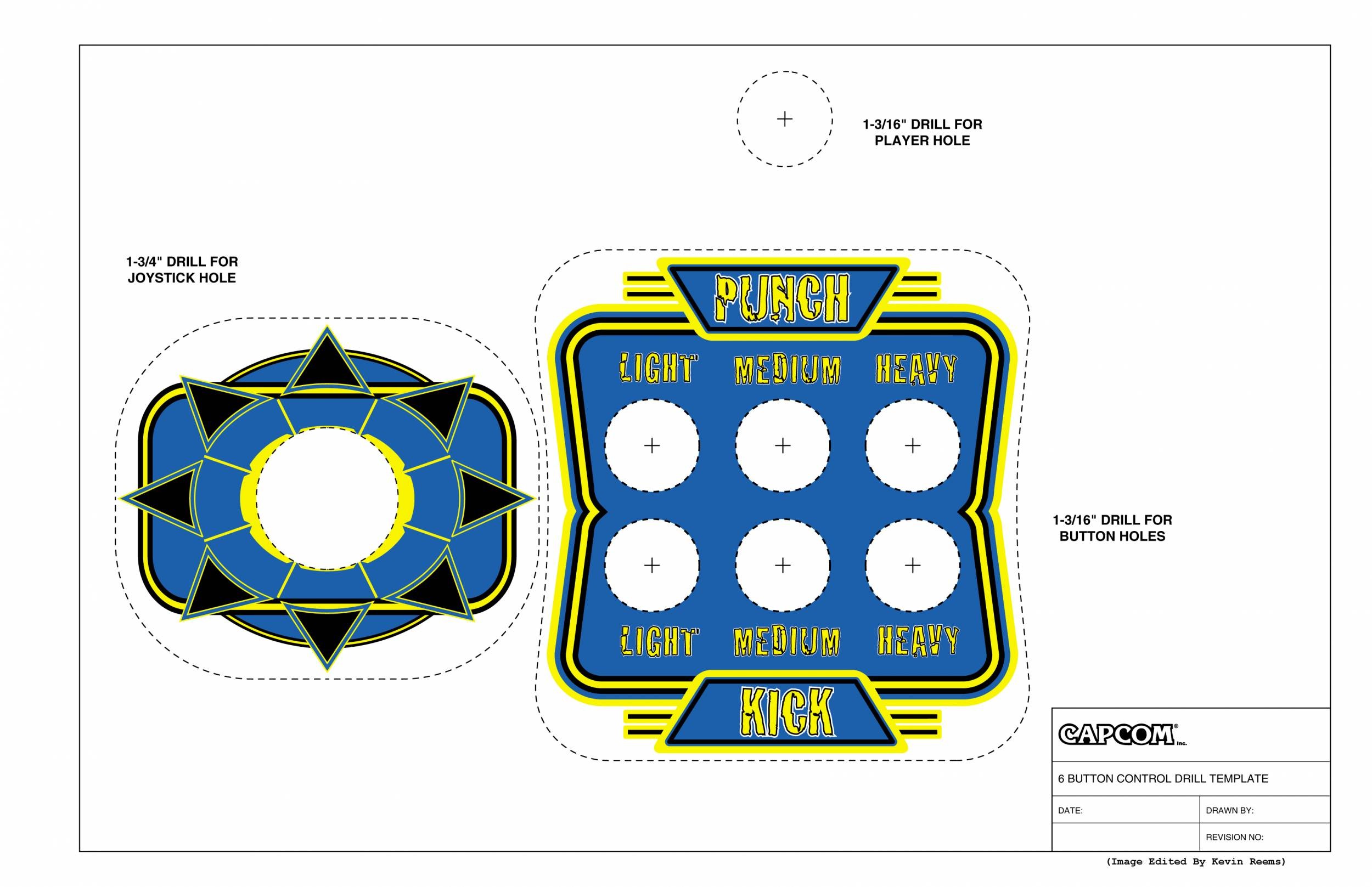

  well.. as i can see, the diagram show the holes for the buttons is 30mm and 28mm. so that means it should not be a perfect circle? but can sanwa buttons fit?

• 2gunsup3/10/2009

  Is this diagram scaled to size?

• rgooley08263/7/2009

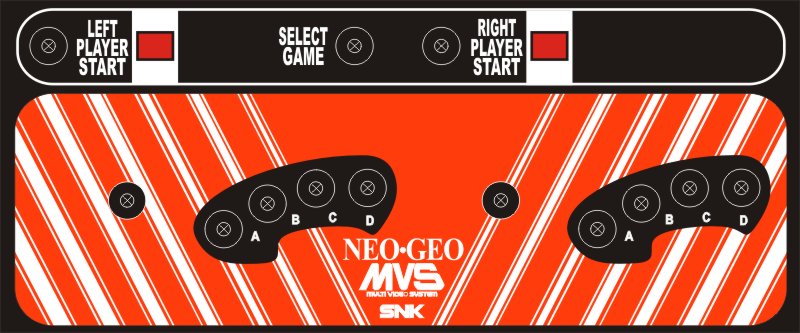

  thanks for the template old schoolers will enjoy this.

• levelhead3/7/2009

  Left a vote on this build

• Khagan3/6/2009

  Left a vote on this build

• dupro243/6/2009

  Left a vote on this build

• Doctor 40002/25/2009

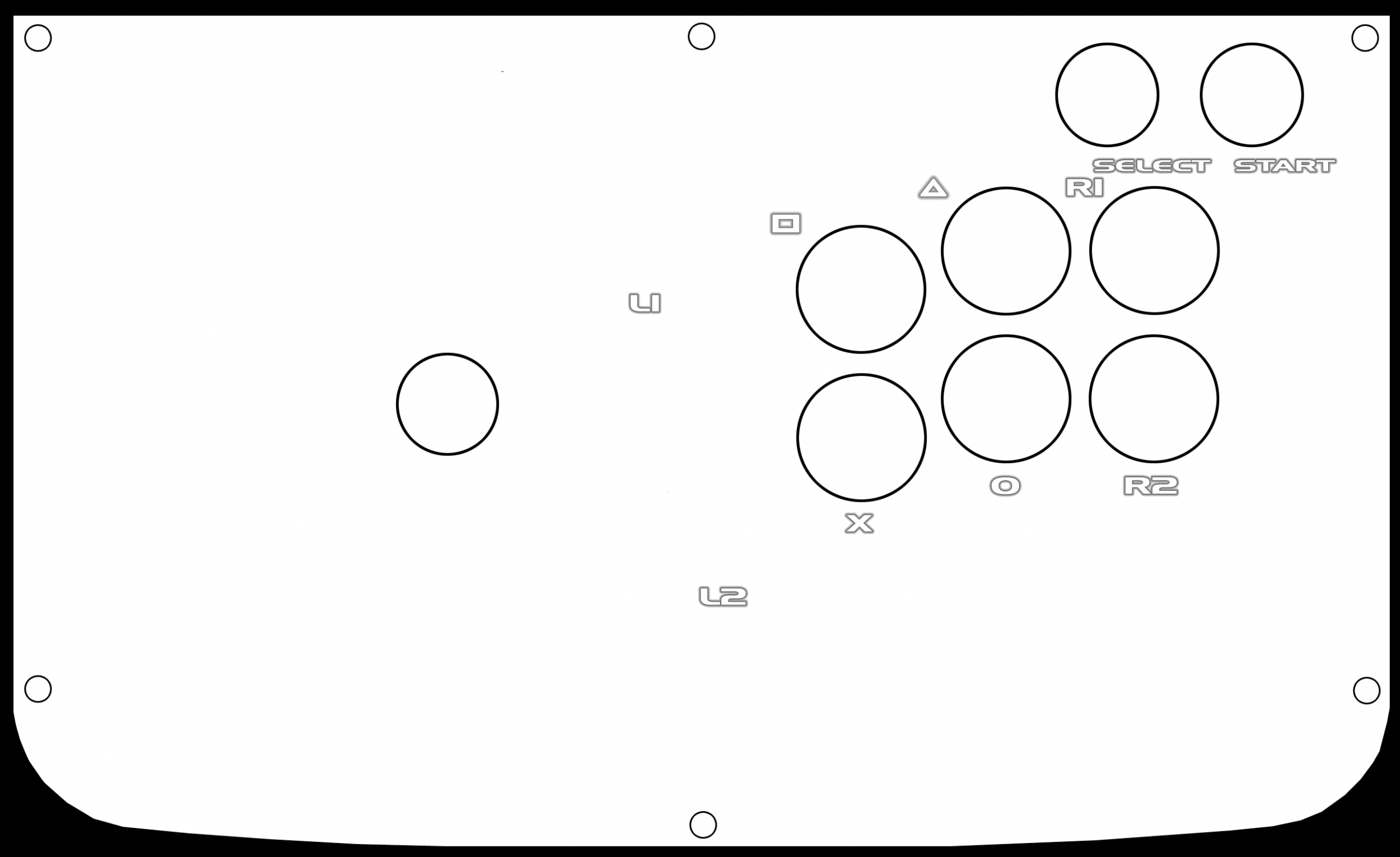

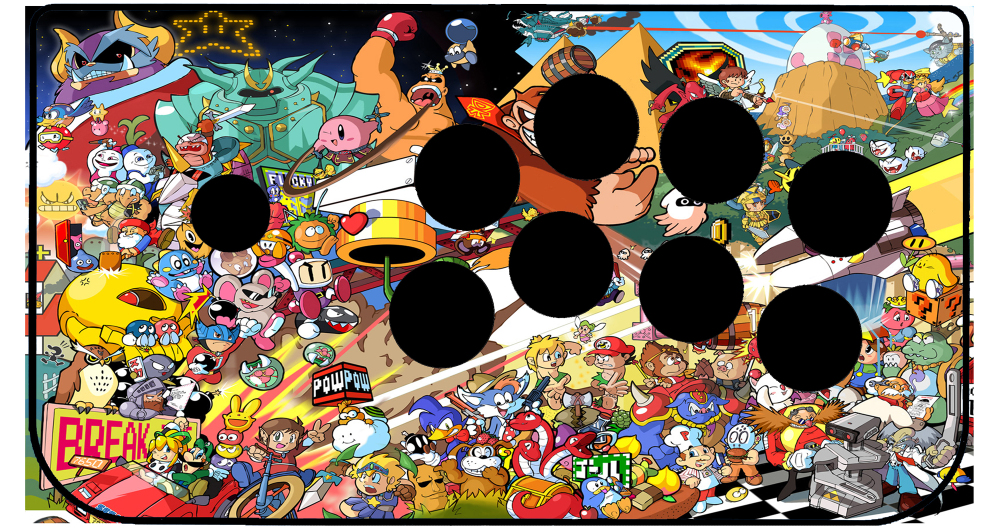

  This is awesome. I scored a cheap Tekken 5 Collector's Edition for $30 a while ago because I wanted to try a stick. Now that I'm hooked I want to replace that godawful art on it with something less gaudy. I know it was some time ago, but thanks for uploading.

• Yoshimi2/22/2009

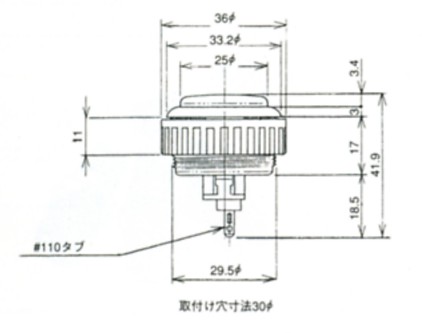

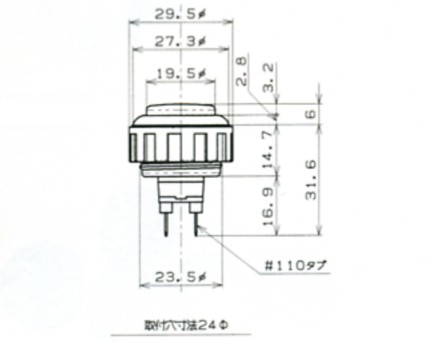

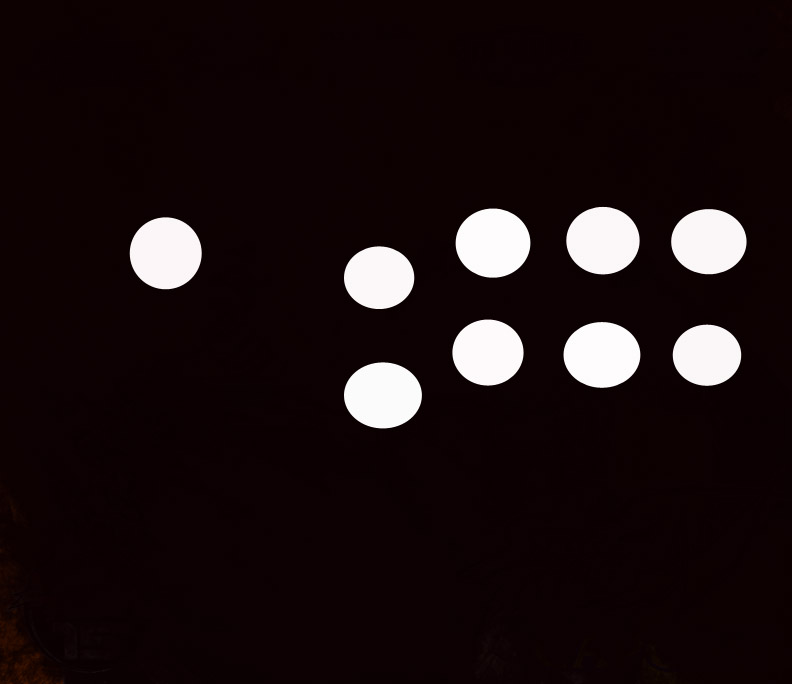

  I'm building a stick, and was planning to use this diagram as my guide. However arn't the buttons too close? Is it using OSBN30 or OSBN24 buttons?

• ShaolinDrunkard4/17/2008

  Left a vote on this build

• shoo4/17/2008

  Left a vote on this build

• Tetsuosan4/16/2008

  Fall back you are da mangs

• TMO Gaming3/27/2008

  I have probably used it more though.

• Big Pockets3/27/2008

  I agree, I have used this as reference on my last couple sticks.

• shoo12/29/2007

  Left a vote on this build

• urbigbro12/28/2007

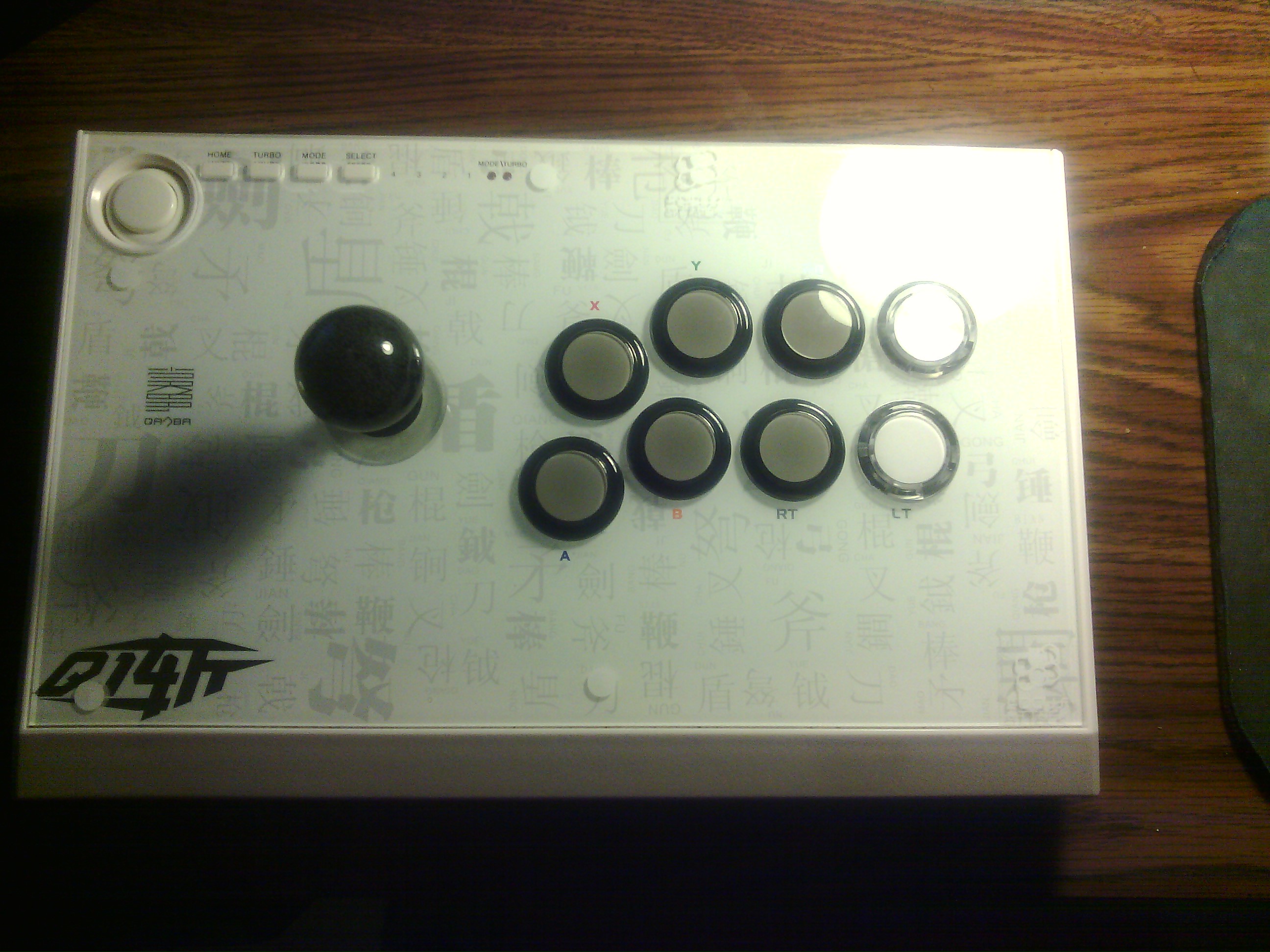

  This will come in handy, and save some time! I usually just figured it out each time I installed the stick! Thanks Fallback!

• urbigbro12/28/2007

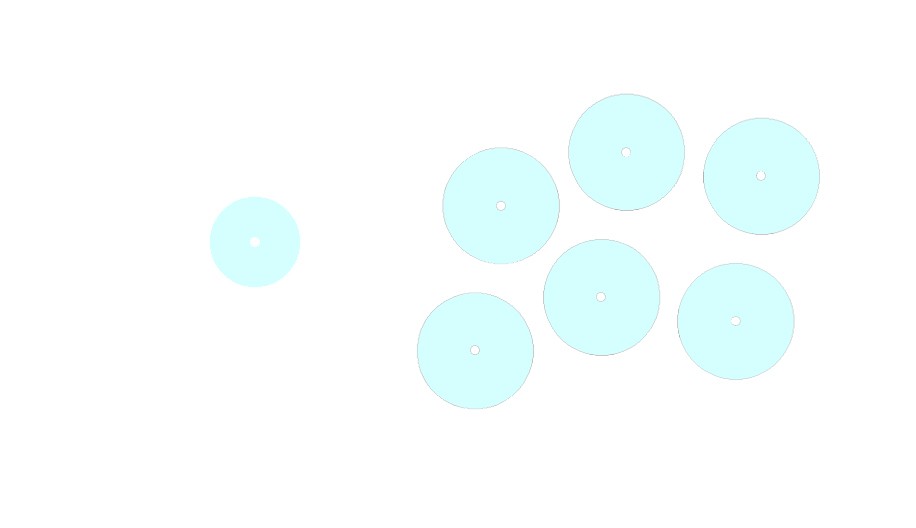

  I've been looking for this for a while now. Is this the American T5 or Japanese T5 layout? They are both Japanese arcade layouts but one is the 1P side and the other is the 2P side layout.

• RoBoBOBR12/11/2007

  point well made =)

• Esker12/8/2007

  >RoBoBOBR Arcade dimensions are also incredibly cramped for anyone with hands larger than a small pea.

• RoBoBOBR12/6/2007

  Left a vote on this build

• RoBoBOBR12/6/2007

  Left a vote on this build

• EvilSamurai12/5/2007

  Left a vote on this build

• EvilSamurai12/5/2007

  Left a vote on this build

• EvilSamurai12/5/2007

  Left a vote on this build

• RoBoBOBR11/29/2007

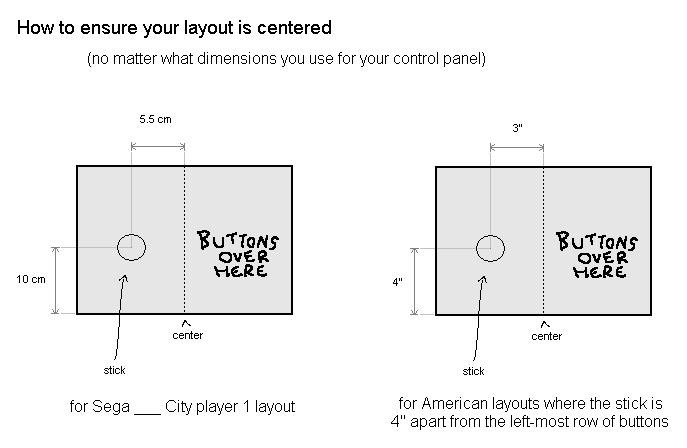

  95mm from stick to buttons is waaayyy off arcade dimensions.
